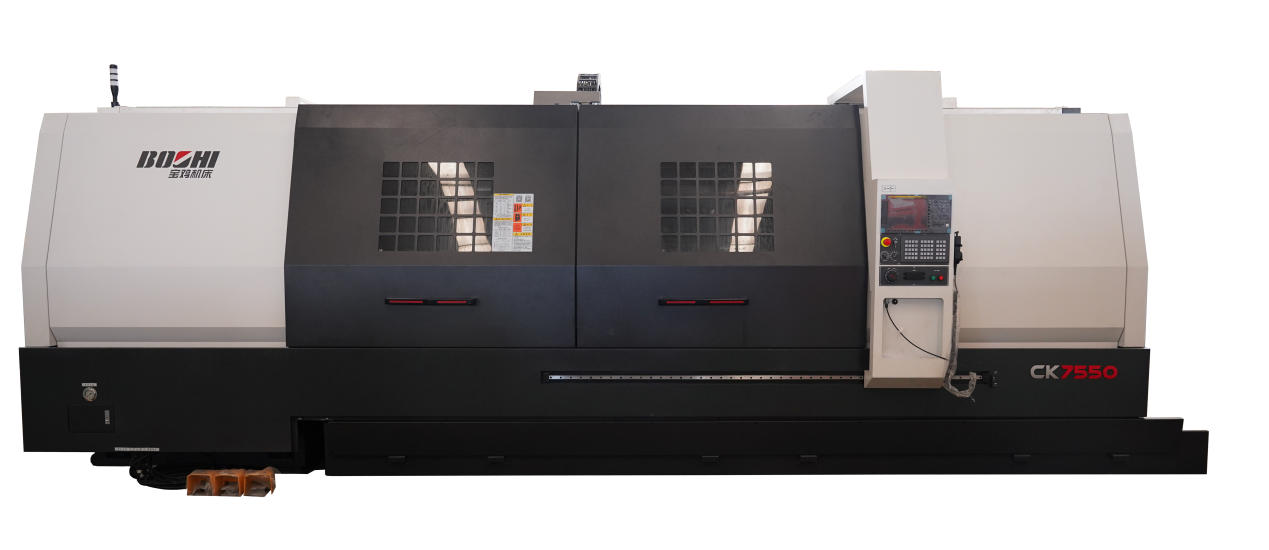

CK7550 CNC lathe is a large full-function CNC horizontal lathe, with high-end CNC system and multi-station horizontal turret tool rest, high degree of automation, easy to operate, cost-effective. The machine adopts high strength cast iron, bed base structure, inclined guide rail, through-hole spindle structure, vibration resistance design and wide area AC spindle motor, spindle bearing and feed screw special bearing transmission noise is low; Multi - station turret tool rest, can be continuous indexing, knife replacement nearby.
|
Capacity |
Item |
Unit |
規(guī) 格 |
||
|
1500 |
2000 |
3000 |
|||
|
Max swing over bed |
mm |
Φ850 |
|||
|
Max swing over slide |
mm |
Φ600 |
|||
|
Max turning diameter |
mm |
Φ750 |
|||
|
Max workpiece length |
mm |
1500 |
2000 |
3000 |
|
|
Spindle |
Hydraulic chuck diameter |
mm |
Φ530 |
||
|
Spindle nose |
GB5900.1 |
A2-11 |
|||
|
Spindle thru-hole |
mm |
Φ135 |
|||
|
Spindle speed |
r/min |
L:8-530 H:30-1200 |
|||
|
Main motor power(cont/30min) |
Kw |
30/37 |
|||
|
Tailstock |
Quill diameter/travel |
mm |
150/150 |
||
|
Center taper |
MT No. |
6 |
|||
|
Carriage |
Slant degree |
deg |
60° |
||
|
X/Z-axis travel |
mm |
385/1540 |
385/2040 |
385/3050 |
|
|
X/Z-axis rapid traverse |
m/min |
10/12 |
|||
|
Turret |
Number of stations/ revolving tool stations |
|
8/12 |
||
|
Tool section (turning/boring) |
mm |
□32×32/60 |
|||
|
Others |
Power source |
kVA |
75 |
||
|
Dimension(L×W×H) |
mm |
5420×2800×2770 |
5870×2683×2649 |
7360×2800×2770 |
|
|
Gross weight |
kg |
15000 |
16000 |
20000 |
|
